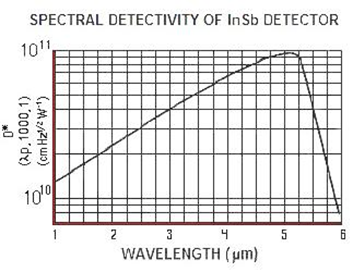

InSb探测器 光谱响应曲线
配套前置放大器
前置放大器型号:INSB-1000
连接方式:BNC
供电电压:±15V DC ; 至少≤10mA的输出.
带宽: 1.5HZ -- 150KHz.最高可5MHz.
调节前放的增益,可以把信号放大5-100倍.
Model Number | FOV=60O, (λpk,1000,1) |
Std.Pkg |
Std. Window | |||||||
Active Area Element (mm) | D* (cmHz1/2W-1) | Responsivity (λp) | Resistance (Rd) (Ω) | Capacitance (Cd) (pF) | Short Circuit Current Isc (µA) | Open Circuit Voltage Vcc (mV) | Operating Temp. (K) | |||
LD-IS-0.25 | q.25/25x25 | > 1.0E11 | > 3 A/W | 1000K | 70 | 0.9 |
80 |
77 | MSL-8 | Sapphire |
LD-IS-0.5 | q.5/5x5 | 500K | 100 | 2 | ||||||
LD-IS-1.0 | q1/1x1 | 350K | 350 | 8 | ||||||
LD-IS-2.0 | q2/2x2 | 100K | 1500 | 30 | ||||||

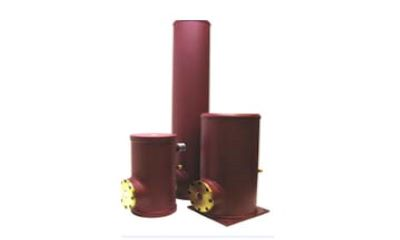

MSL-8 Side Looking Metal Dewar---8 Hour Hold Time MSL-12 Side Looking Metal Dewar---12 Hour Hold Time MDL-8 Down Looking Metal Dewar---8 Hour Hold Time MDL-12 Down Looking Metal Dewar---12 Hour Hold Time | ||||||||||
●医学热成像
●热成像
●导弹制导
●放射性测量
●科学研究
●红外显微镜
