Raptor Photonics Limited is a manufacturer of rugged ultra low light digital & analogue cameras. The firm specialises in complete cameras and core engine solutions using CCD, EMCCD, Scientific CMOS and SWIR sensor technology. The low light capability of Raptor’s cameras makes them ideal for day/night surveillance, homeland security and scientific markets.
Sensor Type | 1/3" Back Thinned EMCCD |
Active Pixel | 128 x 128 |
Pixel Size | 24µm x 24µm |
Active Area | 3.1mm x 3.1mm |
Full Well Capacity | 160,000 electrons |
Shift Register Well Depth | 800,000 electrons |
Non-linearity | <1% |
Readout noise | <0.01 electrons with EM gain ON, <60 electrons with EM gain OFF |
Full Resolution Frame Rate | >500fps |
Dark Current | 0.001e / pix / sec |
Digital Output Format | 16 bit CameraLink (base configuration) |

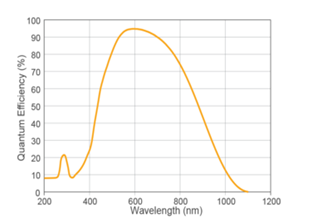

Peak Quantum Efficiency | 95% |
Spectral Response | 200 - 1100nm |
Cooling | -95°C with +10°C coolant |
Binning | 1 x 1 up to 32 x 32 |
Antiblooming protection | Yes |
Lens Mount | C-Mount |
Synchronisation | Trigger IN and OUT - TTL compatible |
Power Supply | 12V DC ±10% |
Total power consumption | <80W |
Operating case temperature | -20°C to +55°C |
Storage Temperature | -30°C to +85°C |
Dimensions | 129mm x 112mm x 94mm |
Weight (no lens) | < 1.5kg |
