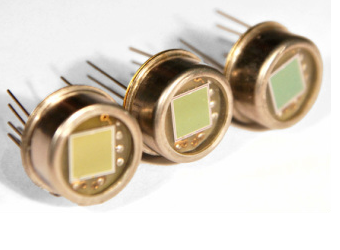

Si detector
Si photodetector is an important part of photoelectric device and is the main detector of visible light and near infrared band.
Si detectors operate at wavelengths between 0.3 and 1.0 um. The product has high sensitivity at room temperature.
Detector type | Active Dia (mm) | Shunt Resistanve ( | Shunt Capacitance pF),tpy | OperatingWavelength (nm) | Spectral Responsivity (A/W) | NEP (W/Hz1/2 ) @800nm,1KHz |
LD-S-010 | 1.0 | 500 | 25 | 300-1000 | 0.55@850nm | <1.0x10-14 |
LD-UVS-010 | 1.0 | 500 | 50 | 200-1000 | 0.55@800nm | <1.0x10-14 |
LD-S-025 | 2.5 | 500 | 400 | 300-1000 | 0.55@850nm | <1.0x10-14 |
LD-UVS-025 | 2.5 | 200 | 300 | 200-1000 | 0.50@800nm | <1.5x10-14 |
LD-S-050 | 5 | 200 | 1500 | 350-1100 | 0.55@850nm | <1.5x10-14@850nm |
LD-UVS-050 | 5 | 50 | 1000 | 200-1100 | 0.50@800nm | <3.0x10-14@700nm |
LD-S-100 | 10 | 10 | 1000 | 350-1100 | 0.50@850nm | <1.0x10-13@850nm |
LD-UVS-100 | 10 | 50 | 1800 | 200-1000 | 0.50@800nm | <5x10-14@800nm |
LD-S-113 | 11.3 | 200 | 9000 | 300-1100 | 0.55@850nm | <1.5x10-14 |
LD-UVS-113 | 11.3 | 10 | 4000 | 200-1000 | 0.50@800nm | <1.0x10-13 |
)
